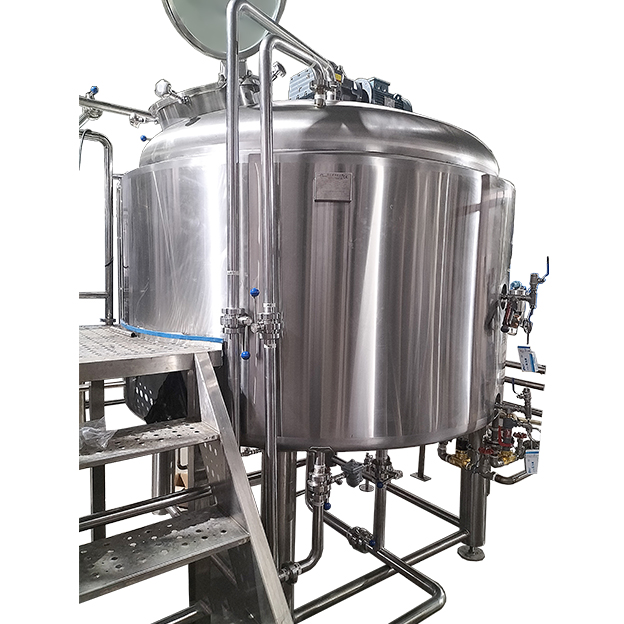

Brewhouse Mash Tun

Product Description

These steam or electrical powered brewhouses can come in 2, 3 or 4 vessel configurations and include a Mash Tun, Lauter Tun, Wort Kettle and Whirlpool. Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Heating way has Steam heating, direct fire heating, electric heating optional.

Mash Tun:

*Constructed of SUS 304; Brushed outer shell

*20%~30% head space

*Insulation: Rock wool

*Thickness of insulating layer: 80mm

*Interior thickness: 3mm

*Exterior thickness: 2mm

*Steam Jacket for steam heating

*Mechanical agitation: frequency control

*Top mounted manway, sight glass optional

*CIP rotary spray device

*Liquid-level connection pipe

*Condensate outlet pipe

*LED light fixture

*Thermowell for temperature,PT100 Temperature Probe.

*Dished top,Bottom taper angle 140°.

*Leg height can be adjusted.

*Safety combination.

*Plate Surface protection, ribbon polished on welds.

*With all matched valves and accessories.
