Brite Beer Tank

Brite Beer Tank

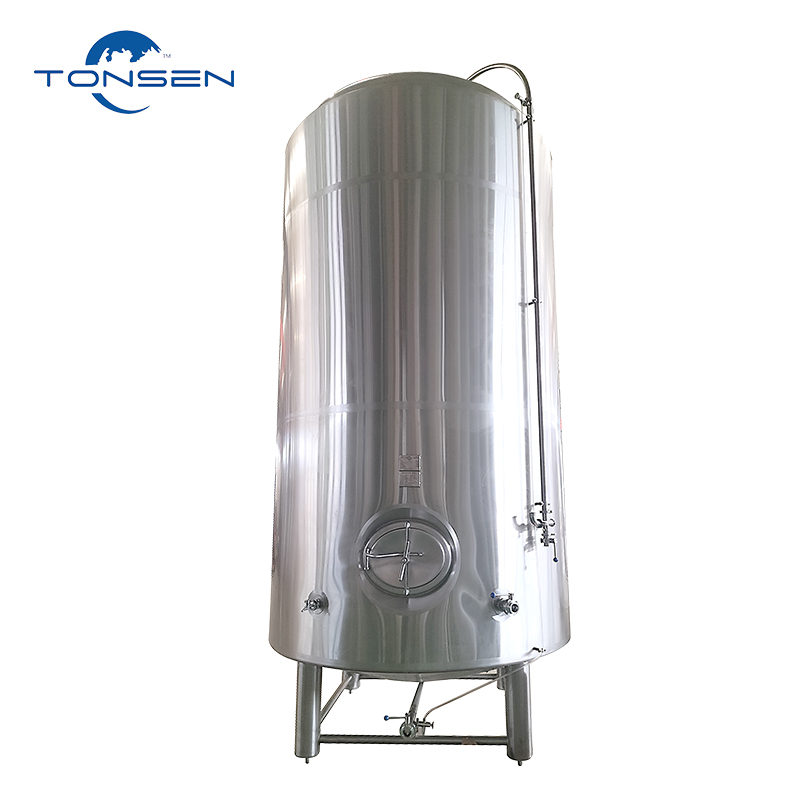

Jinan TONSEN Brite Beer Tank are available from 1 barrel to 100 or more barrels.  The Bright(Brite) tank have the dish cover at top & bottom with the Cylinder Body.  All tanks are food grade stainless steel 304 with a 3 mm thickness for 3BBL-70BBL, while larger tanks have a 4 mm thickness.  The cooling system is a dimple jacket with insulated polyurathane fill.  All tanks are designed for up to 14.7 PSI and tested at 30 PSI.  The inside of the tanks are polished to Ra≤0.4um and the outside is a brushed finish. All tanks come standard with 25% head space on top of working volume.

Tank internal and external wall are made of international quality standards of sanitary 304 stainless steel, the Polyurethane  insulation thickness between the inner and outer is 80-200mm. Conic bottom install inlet and outlet pipes,valves,temperature transducer,etc,the height of conic bottom is a quarter of the total height. the ratio of tank diameter and height of tank is 1：2～1：4.
